特征：
符合OIML认证指标
高精度
IP66 防护
易于安装，性能稳定
铝合金
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±0.1%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.02mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.2% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.2% | ||
| Hysteresis Error 滞后 | <±0.2% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.2% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 415Ω±5 | IP Rating 防护等级 | IP66 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Aluminum 铝合金 | ||

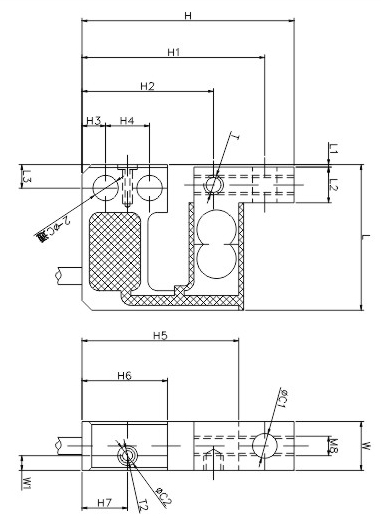

| DIMENSIONS 尺寸 | |||||||||||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | L2 | L3 | W | W1 | H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | T | T1 |
kg/mm 1-10 | 5.2 | 5 | 4 | 30 | 0.5 | 7 | 4.8 | 10 | 3 | 43.4 | 37.4 | 26.9 | 4.8 | 9 | 32.1 | 17.5 | 9.3 | M4深4 | M3深6 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | |||||||||||||||||||
| 2.205-22.05 | 0.21 | 0.20 | 0.16 | 1.18 | 0.02 | 0.28 | 0.19 | 0.39 | 0.12 | 1.71 | 1.47 | 1.06 | 0.19 | 0.35 | 1.26 | 0.69 | 0.37 | M4 DP 0.16 | M6 DP 0.24 |
