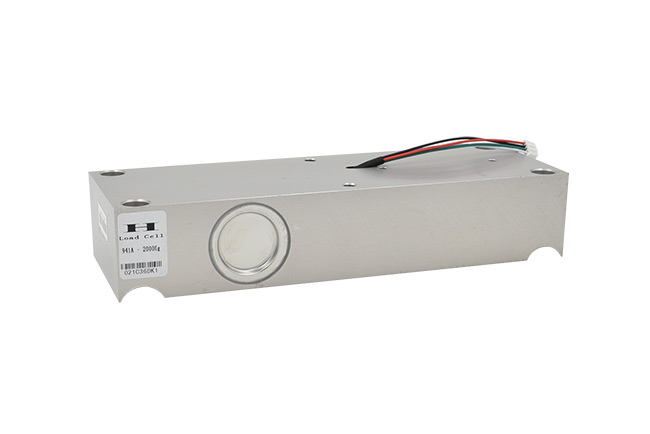

特征：
易于安装，性能稳定
抗过载能力强
适用于限位过载用途
IP67 防护
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±0.5%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.04mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.03% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.03% | ||
| Hysteresis Error 滞后 | <±0.03% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.05% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 415Ω±5 | IP Rating 防护等级 | IP67 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Aluminum 铝合金 | ||

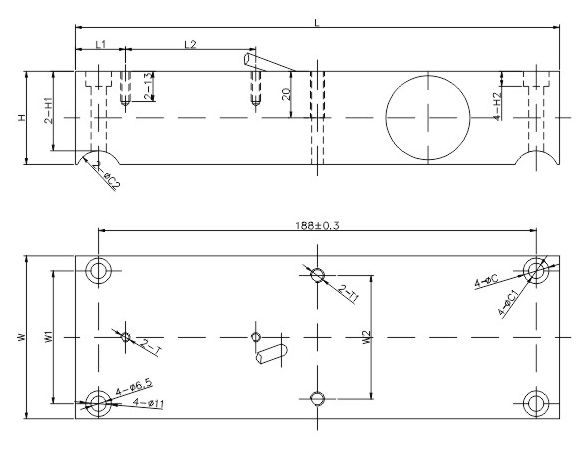

| DIMENSIONS 尺寸 | |||||||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | L2 | L3 | W | W1 | W2 | H | H1 | H2 | T | T1 |
t/mm 1.8-2.5 | 11 | 6.5 | 19.8 | 208 | 21.5 | 56 | 188 | 70 | 57 | 53 | 40 | 34.2 | 6.5 | M4深13 | M6深20 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | |||||||||||||||
| 3968-5511 | 0.43 | 0.26 | 0.78 | 8.19 | 0.85 | 2.20 | 7.40 | 2.76 | 2.24 | 2.09 | 1.57 | 1.35 | 0.26 | M4 DP 0.51 | M6 DP 0.79 |
