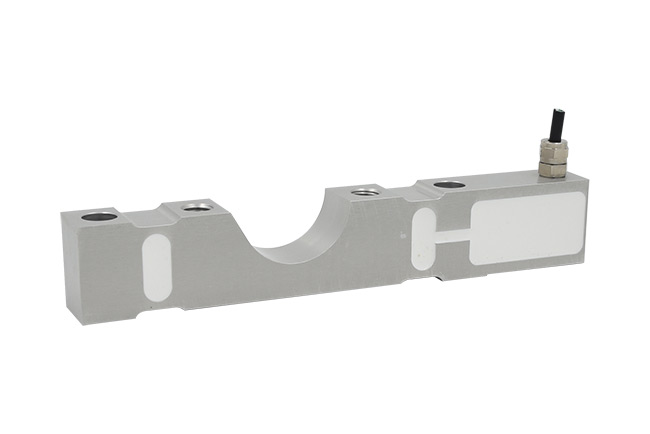

特征：
易于安装，性能稳定
抗过载能力强
适用于限位过载用途
IP67 防护
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±0.5%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.04mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.03% | Nominal Temperature Range工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.03% | ||
| Hysteresis Error 滞后 | <±0.03% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.05% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 415Ω±5 | IP Rating 防护等级 | IP67 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Aluminum 铝合金 | ||

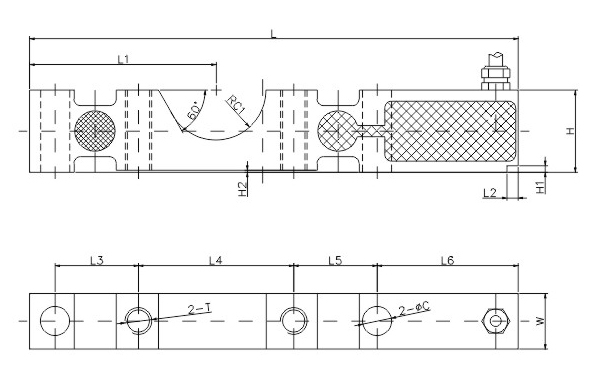

| DIMENSIONS 尺寸 | ||||||||||||||
RATE CAPACITY 量程 | C | C1 | L | L1 | L2 | L3 | L4 | L5 | L6 | W | H | H1 | H2 | T |
kg/mm 850 | 13 | 22.5 | 220 | 84 | 5 | 37.5 | 70 | 37.5 | 63.5 | 25 | 37 | 3 | 1 | M12 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | ||||||||||||||
| 1874 | 0.51 | 0.89 | 8.66 | 3.31 | 0.20 | 1.48 | 2.76 | 1.48 | 2.5 | 0.98 | 1.46 | 0.12 | 0.04 | M12 |
