特征：
符合OIML认证指标
高精度
合金钢
易于安装，性能稳定
合金钢/不锈钢
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±0.1%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±1.0mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.3% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.3% | ||
| Hysteresis Error 滞后 | <±0.3% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.3% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 775Ω±5 | IP Rating 防护等级 | IP67/IP68 |
| Outnput Resistance 输出电阻 | 702Ω±2 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Alloy steel/Stainless steel 合金钢/不锈钢 | ||

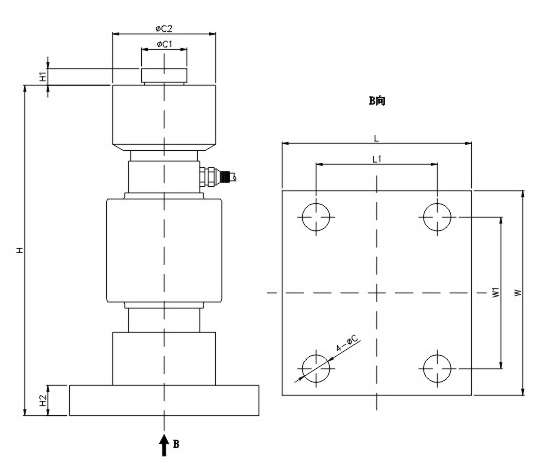

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | W | W1 | H | H1 | H2 |
| t/mm | ||||||||||
| 10-30 | 18 | 30 | 88 | 125 | 80 | 135 | 100 | 218 | 20 | 20 |
| 40-60 | 18 | 40 | 97 | 160 | 124 | 160 | 124 | 218 | 20 | 20 |
| klb/inches(conversion of above dimensions 由以上尺寸转换) | ||||||||||
| 22-30 | 0.71 | 1.18 | 3.46 | 4.92 | 3.15 | 5.31 | 3.94 | 8.58 | 0.79 | 0.79 |
| 88-132 | 0.71 | 1.57 | 3.82 | 6.30 | 4.77 | 6.30 | 4.90 | 8.58 | 0.79 | 0.79 |
