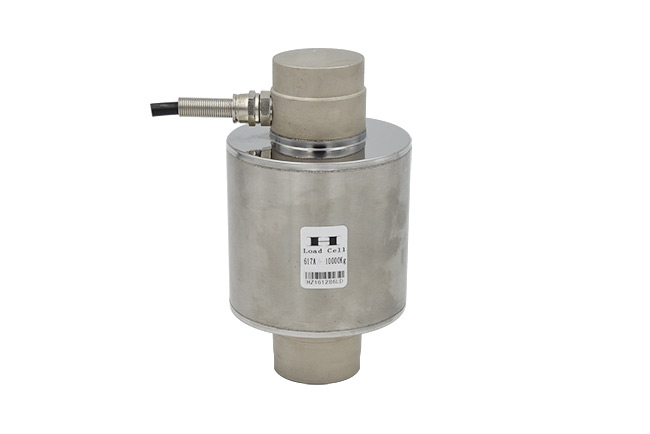

量程：10t,20t,30t,40t,50t,60t
适用于材料试验机，坏境监测设施。
特征：
符合OIML认证指标
高精度
合金钢
易于安装，性能稳定
合金钢/不锈钢
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±0.1%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±1.0mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.3% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.3% | ||
| Hysteresis Error 滞后 | <±0.3% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.3% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 775Ω±5 | IP Rating 防护等级 | IP67/IP68 |
| Outnput Resistance 输出电阻 | 702Ω±2 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Alloy steel/Stainless steel 合金钢/不锈钢 | ||

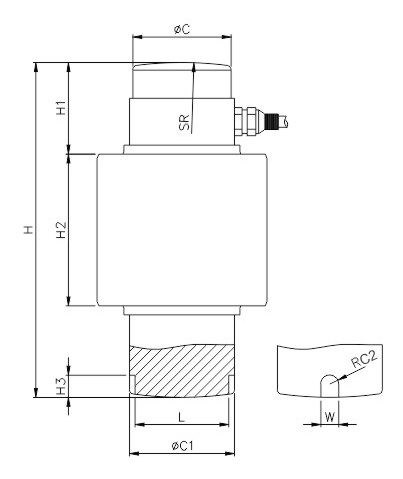

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | SR | L | W | H | H1 | H2 | H3 |
| t/mm | ||||||||||
| 4.5-13.6 | 40 | 41.7 | 4 | 150 | 34.7 | 8 | 150 | 38 | 82 | 10 |
| 18 | 53 | 53 | 5 | 200 | 43 | 10 | 170 | 47 | 95 | 10 |
| klb/inches(conversion of above dimensions 由以上尺寸转换) | ||||||||||
| 10-30 | 1.57 | 1.64 | 0.16 | 5.90 | 1.37 | 0.31 | 5.90 | 1.49 | 3.23 | 0.39 |
| 40 | 2.09 | 2.09 | 0.20 | 7.87 | 1.69 | 0.39 | 6.69 | 1.85 | 3.74 | 0.39 |
