量程：25Kg,50Kg,200Kg,1000Kg,2000Kg,3000Kg,5000Kg,10000Kg,20000Kg
适用于汽车衡，车载称重。
特征：
IP67防护
防爆级（Ex ib II Ct4）
低外形，高抗干扰性能
适用于动态称重
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±10%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.04mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.05% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.3% | ||
| Hysteresis Error 滞后 | <±0.05% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.1% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 400Ω±25 | IP Rating 防护等级 | IP67 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Alloy steel/Stainless steel 合金钢/不锈钢 | ||

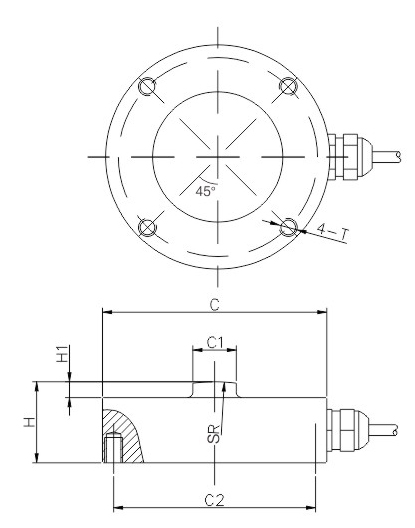

| DIMENSIONS 尺寸 | |||||||
RATE CAPACITY 量程 | C | C1 | C2 | SR | H | H1 | T1 |
| kg/mm | |||||||
| 25-50 | 62 | 12 | 55 | 50 | 22 | 4 | M5深7 |
| 40CrNiMoA | |||||||
| 100-2000 | 62 | 12 | 55 | 50 | 22 | 4 | M5深7 |
| 5000 | 98 | 20 | 72 | 150 | 40 | 5 | M6深13 |
| 10000 | 98 | 20 | 72 | 150 | 45 | 5 | M6深13 |
| 20000 | 118 | 25 | 90 | 250 | 50 | 7 | M8深15 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | |||||||
| 55-110 | 2.44 | 0.47 | 2.16 | 1.97 | 0.87 | 0.16 | M5 |
| 220-440 | 2.44 | 0.47 | 2.16 | 1.97 | 0.87 | 0.16 | M5 |
| 11022 | 3.86 | 0.79 | 2.8 | 2.0 | 1.57 | 0.20 | M6 |
| 22045 | 3.86 | 0.79 | 2.83 | 5.91 | 1.77 | 0.20 | M6 |
| 44092 | 4.65 | 0.98 | 3.54 | 9.84 | 1.97 | 0.28 | M8 |
