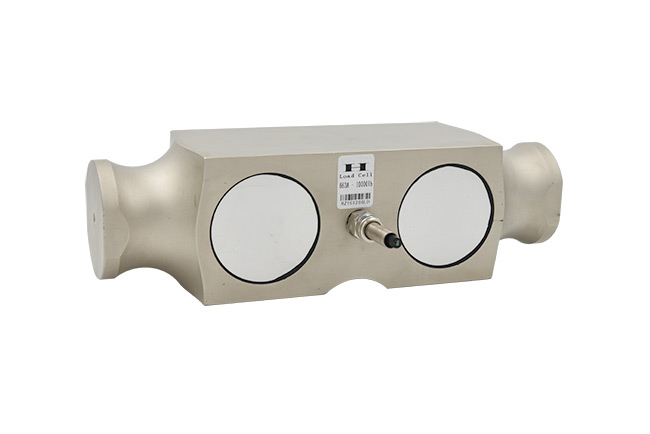

量程：10KLb,45KLb,50KLb,,100KLb
适用于汽车衡，恶劣坏境称重
特征：
符合OIML认证指标
高精度
合金钢
易于安装，性能稳定
合金钢/不锈钢
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±0.1%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±1.0mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.3% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.3% | ||
| Hysteresis Error 滞后 | <±0.3% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.3% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 775Ω±5 | IP Rating 防护等级 | IP67/IP68 |
| Outnput Resistance 输出电阻 | 702Ω±2 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Alloy steel/Stainless steel 合金钢/不锈钢 | ||

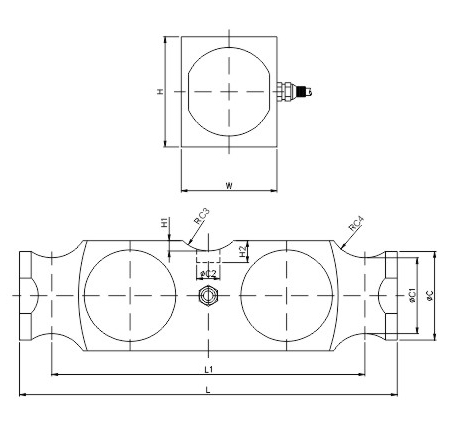

| DIMENSIONS 尺寸 | |||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | C3 | C4 | L | L1 | W | H | H1 | H2 |
| t/mm | |||||||||||
| 22.04-99.21 | 61 | 52 | 22 | 25.4 | 25.4 | 260 | 216 | 64 | 72 | 6 | 19 |
| 110.23-22.46 | 70 | 60 | 30 | 38.1 | 38.1 | 292 | 254 | 76 | 86 | 10 | 25 |
| klb/inches(conversion of above dimensions 由以上尺寸转换) | |||||||||||
| 10-45 | 2.40 | 2.05 | 0.87 | 1.00 | 1.00 | 10.24 | 8.50 | 5.52 | 2.83 | 0.24 | 0.75 |
| 50-1000 | 2.75 | 2.36 | 1.18 | 1.50 | 1.50 | 11.50 | 10.00 | 2.99 | 3.39 | 0.39 | 0.98 |
