量程：60Kg,100Kg,150Kg,200Kg,300Kg,500Kg,600Kg,750Kg
适用于台秤，分蛋器等
特征：
符合OIML认证指标
角差修正
IP6防护
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±10%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.02mV/V | Reference Max.Platform Size 大秤台尺寸 | 600*700mm |
| Nonlinearity 非线性 | <±0.017% | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Repeatability 重复性 | <±0.017% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Hysteresis Error 滞后 | <±0.017% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.02% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 405Ω±15 | IP Rating 防护等级 | IP66 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Aluminum 铝合金 | ||

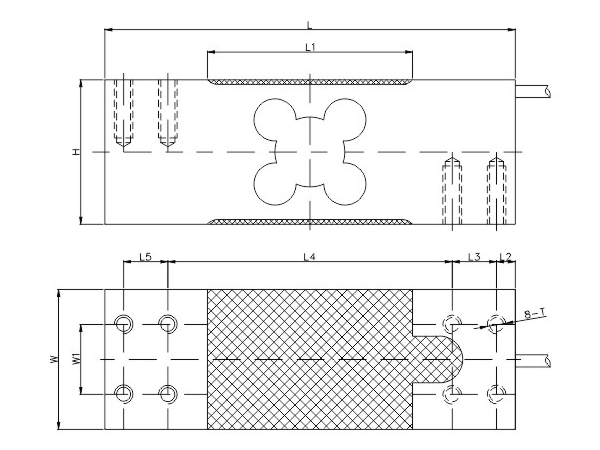

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | H | T |
| kg/mm 50-1000 | 176 | 88 | 8 | 19 | 122 | 19 | 60 | 30 | 62 | M8深20 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | ||||||||||
| 44.09-2204.6 | 6.93 | 3.46 | 0.31 | 0.75 | 4.80 | 0.75 | 7.36 | 1.18 | 2.44 | M8DP 0.79 |
