量程：10Kg,15Kg,20Kg,30Kg,50Kg,75Kg,100Kg,200Kg,300Kg
适用于台秤，皮带秤等电子称重设备
特征：
符合OIML认证指标
通常精度可达到C3，5000分度值
角差修正
IP66防护
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.0±10%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.02mV/V | Reference Max.Platform Size 大秤台尺寸 | 450*450mm |
| Nonlinearity 非线性 | <±0.017% | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Repeatability 重复性 | <±0.017% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Hysteresis Error 滞后 | <±0.017% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.023% | Breaking Overload 极限过载 | 300% of full scale |
| Input Resistance 输入电阻 | 405Ω±15 | IP Rating 防护等级 | IP66 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Aluminum 铝合金 | ||

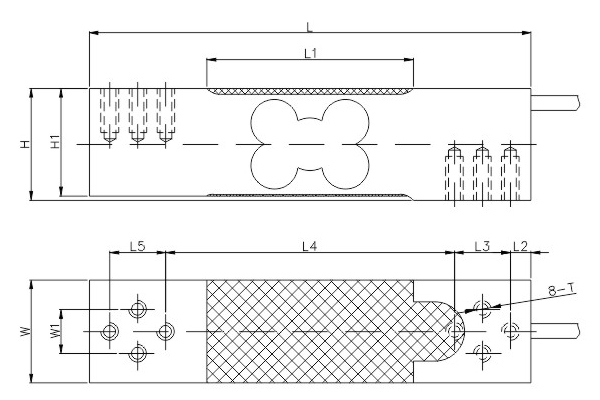

| DIMENSIONS 尺寸 | |||||||||||
| RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | H | H1 | T |
| kg/mm 30-300 | 150 | 70 | 7 | 19 | 98 | 19 | 35 | 15 | 38 | 36.5 | M6深15 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | |||||||||||
| 66.14-661.4 | 5.91 | 2.76 | 0.28 | 0.75 | 3.86 | 0.75 | 1.38 | 0.59 | 1.50 | 1.44 | M6 DP 0.59 |
